Flow charts for conditionals

flow charts yay

• Oval = beginning
• parallelogram
  • Assigning variables
  • Getting user input
  • Output
• Diamond = conditions
• Square
  • Describes a condition (true / false arrow)

Note:

• Do not write exact code

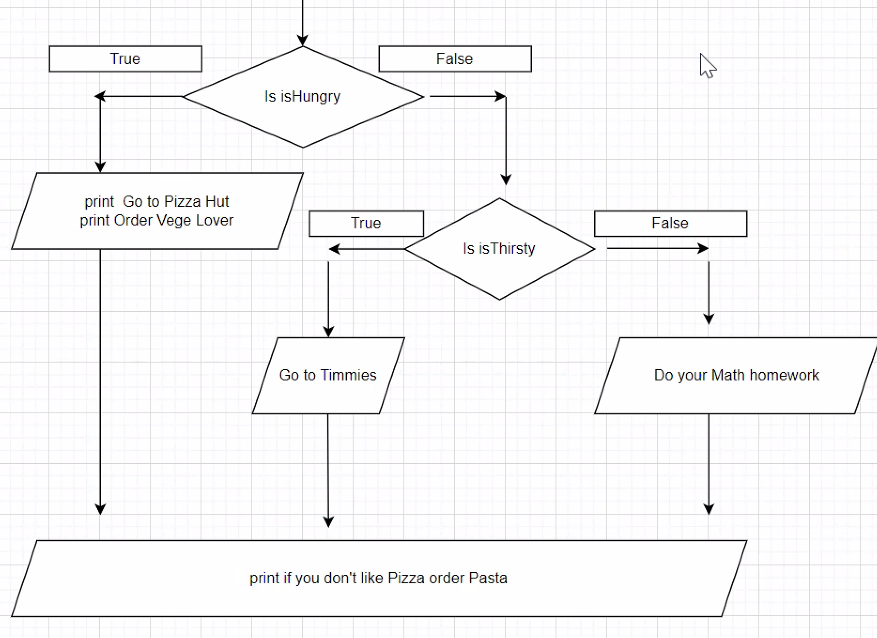

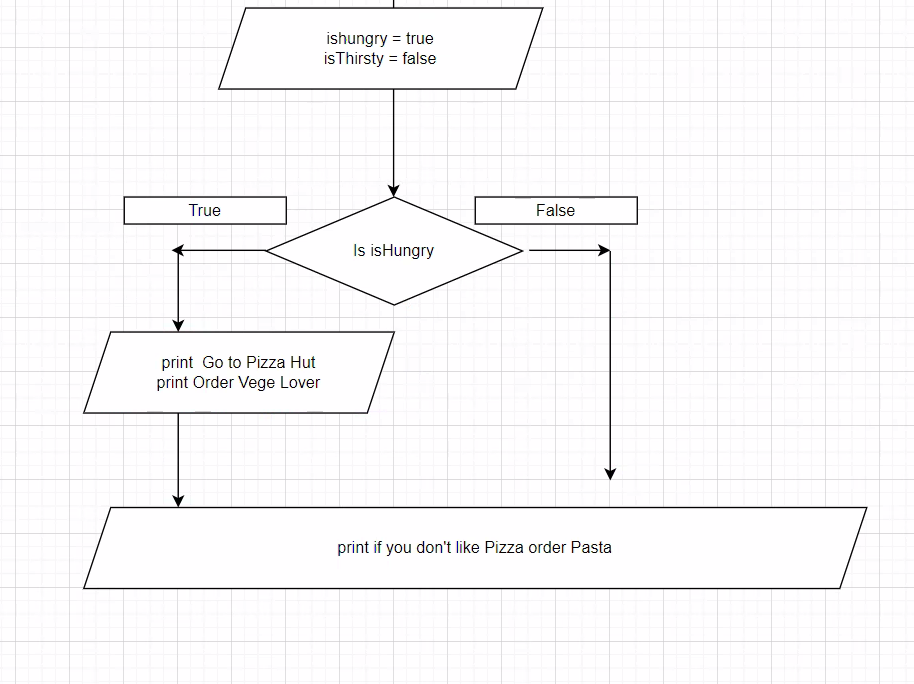

The top image is an oval that says “start”

(newer)

• The point of the parallelogram is to specify input and output.
