Comparitors

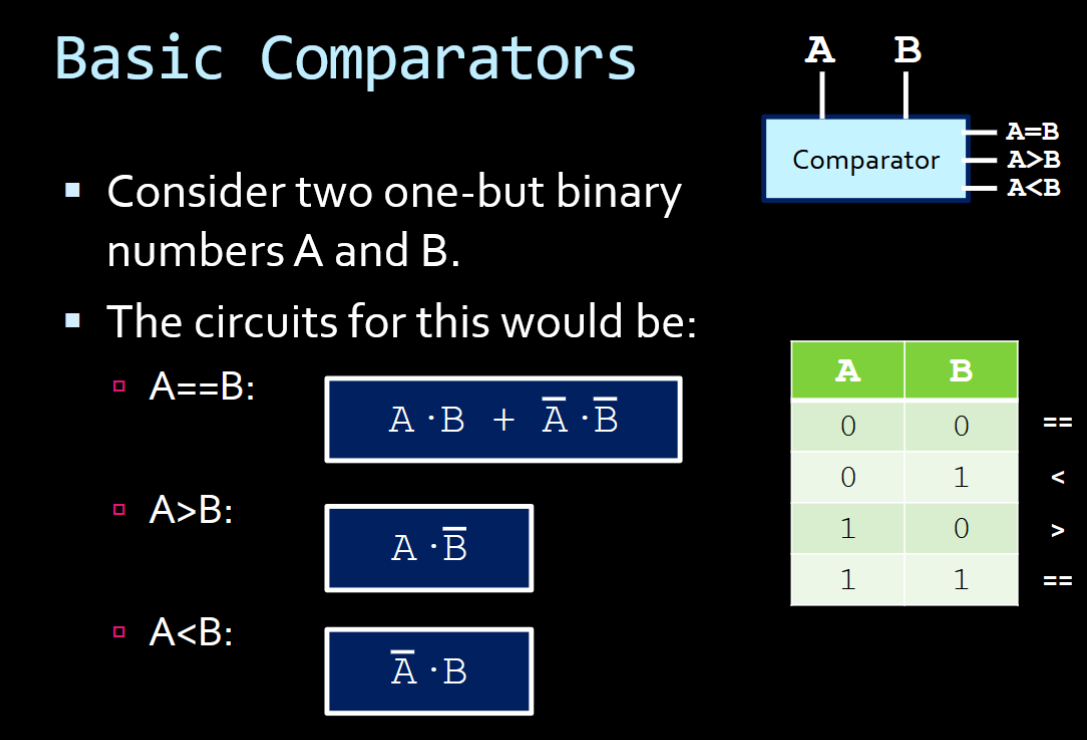

Takes two input vectors (so, like, one or more bits) A and B, and determines if A is less than, greater than, or equal to B.

There are 4 total permutations for 1-bit inputs, which makes 1 bit comparators super easy!

But for more than 1 bit, things get spicy.

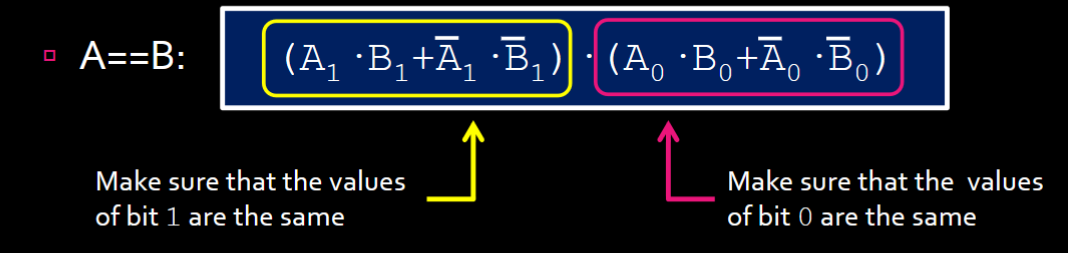

• For instance if we’re talking about 2 bit inputs, A == B only when $A_0==B_0$ and $A_1==B_1$ so that becomes obtuse quite fast
•
• To check if A is greater than B we check if
  1. $A_1<B_1$. In that case, $A<B$ is a given, or
     1. This looks like $A_1\cdot {\bar{B}}_1$
  2. $A_1==B_1$ and $A_0<B_0$.
     1. This looks like $(A_1\cdot B_1+{\bar{A}}_1\cdot {\bar{B}}_1)\cdot (A_0\cdot {\bar{B}}_0)$ less than is similar!

The expression $A_1\cdot B_1+{\bar{A}}_1\cdot {\bar{B}}_1$ is true when the first bit is equal (replace the 1’s with 0’s to get when the second bit is equal)

General comparators

For a “general” comparator we need to define some things:

Equality:

• For equality of any bit, we have $X_i=A_i\cdot B_i+{\bar{A}}_i\cdot \overline{B_i}$
• That gives us $A==B:X_0\cdot X_1\cdot \cdots \cdot X_n$

> and <

• For any digit, if the previous are equal, and the one we’re on, $i$ satisfies:
  • $A_i=0$ and $B_i=1$, then $A<B$ no matter what bits after $A_i$ follow it
  • $A_i=1$ and $B_i=0$, then $A>B$ for similar reason to above
• That gives us, for any $n$ sized input stream:
  • $A>B:A_n\cdot {\bar{B}}_n+X_n\cdot A_{n-1}\cdot {\bar{B}}_{n-1}+\cdots +{\prod }_{k=1}^n{X}_k\cdot A_0\cdot B_0$
    • The first check is your base case (if the first bit of A is bigger than the second of B, then boom you’re done)
      • the $X$ is defined from before
    • The second checks if the bits before are equal. if they are, we also compare the bit at.
    • This repeats until we’re checking for every bit before the last bit; if they’re all equal, then compare the bits we’re at.
  • The same is reflected on $<$ of course

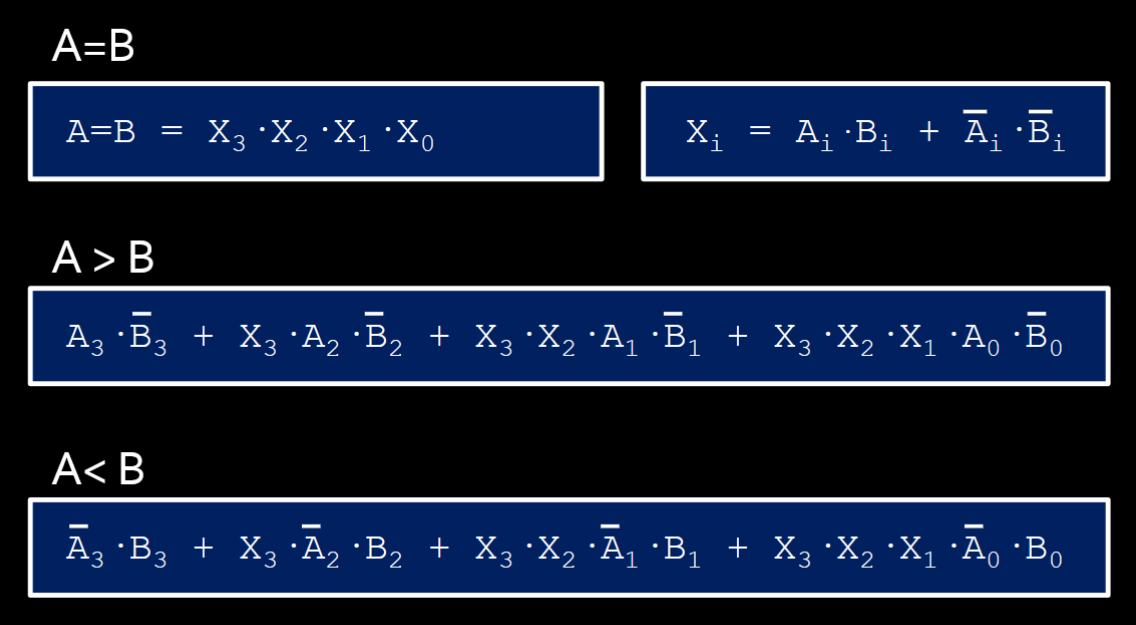

Example of 4-bit comparator expressions

Subtraction instead

The more bits you have, the more complex comparing becomes. Therefore, subtracting might be the play. Simply subtract A and B, and if the sign changes, you can determine if A < B or A > B!
