Booth's Algorithm

Has to do with optimizing math problems in your head. E.g. 99099 x 5 = 100000 x 5 + 100 x 5 !

Assuming the two inputs are of size n and k, for the operand:*:

1. If digits at i and i-1 are 0 and 1, the multiplicand is added to the result at position i.
2. If digits at i and i-1 are 1 and 0, the multiplicand is subtracted from the result at position i. The result will always be n+k bits

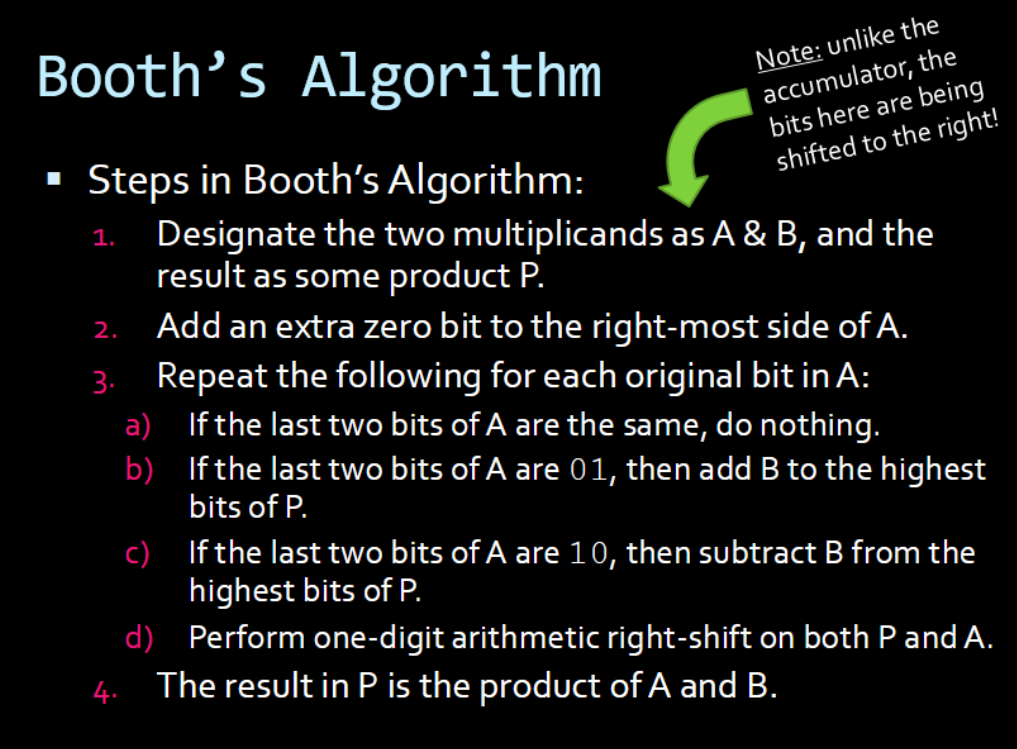

Calculating w/ Booth’s Algorithm

My way of describing it:

1. You have numbers A x B.
2. Calculate -B by 2’s complement
3. Within A, for each pair of bits (starting from the right side), if it is 10, then add B shifted such that the first bit of B is parallel to the 1 within 10.
4. As for the pair 01, well you add -B instead with the first bit of -B adjacent to the 0 in this case.
5. Then once you’ve got through all the pairs, add up all the things you added and your result is there! So much easier !!

Implementation

• The circuit to check the 2 bits is not duplicated; it’s repeated over many cycles! How? By shifting.
  • ”Have hardware set up to compare two neighboring bits in the lowest position of A, and looking for mismatched pairs in A by shifting A to the right one bit at a time”
